Infratech WD5228MG Infrared Electric Patio Heater Marine Grade
Infratech WD Series Dual Element WD5228MG 5200 Watts 208V 25 Amps Infrared Electric Patio Heater 48 x 8.19 x 3 in. Marine Grade Color
Infratech Part Number:
AVAILABILITY and Processing Time: This item ships out within 6 to 10 business day(s), from Irvine, CA.
30-Day Return Policy applies to all items at InfratechHeating.com. See Return Policy

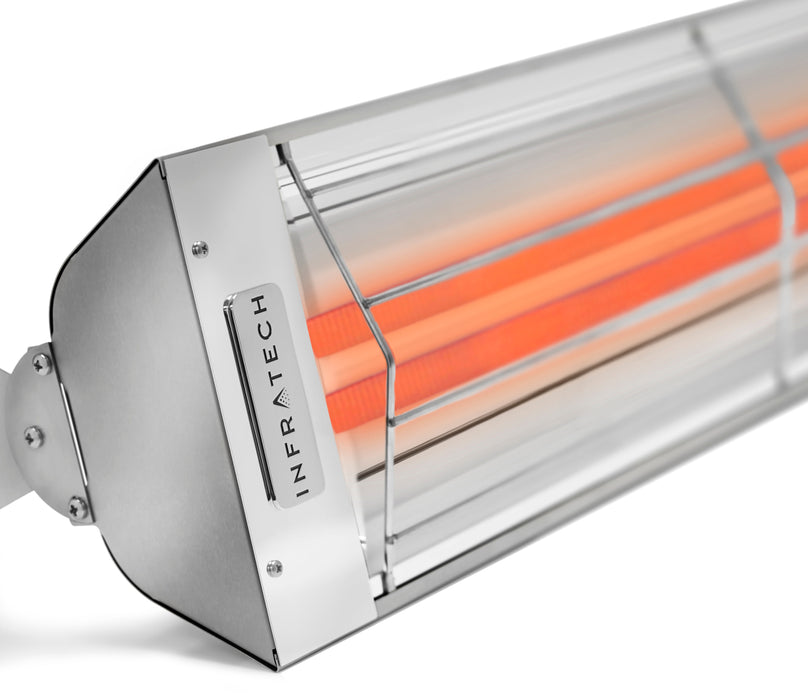

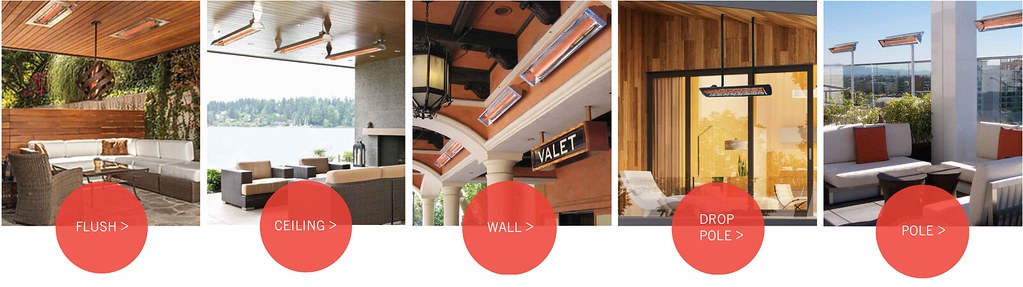

Introducing the Infratech WD Series Dual Element WD5228MG 5200 Watts 208V 25 Amps Infrared Electric Patio Heater 48 x 8.19 x 3 in. Marine Grade Color. This is a 5200 Watt 208 Volt 25 Amp heater. At 48 inches long, this heater will heat an area of 10 by 10 feet at a mounting height of between 8 and 10 feet. The WD Series heaters may be surface or flush mounted, however, it is the preferred model for flush mounting due to its deeper body which provides for better ventilation within the ceiling pocket. In comparison, the more slim bodied CD Series is better suited for a surface mount installation. This heater is available in Stainless Steel and eight additional colors as well as a Marine Grade Option. Compatible controls for this heater are the Duplex stack switch and all Custom Control options. Please keep in mind that the available Infratech heater voltages of 120, 208 and 240 are typical for residential properties, while 277 and 480 are more common for commercial. If you're not sure which voltage to choose, please consult with a licensed electrician. These heaters come with a full 3 year warranty from Infratech.
DESIGN SYMMETRY - Our new designer-friendly 48-inch length offers new possibilities for enhanced visual appeal in a variety of spatial configurations.

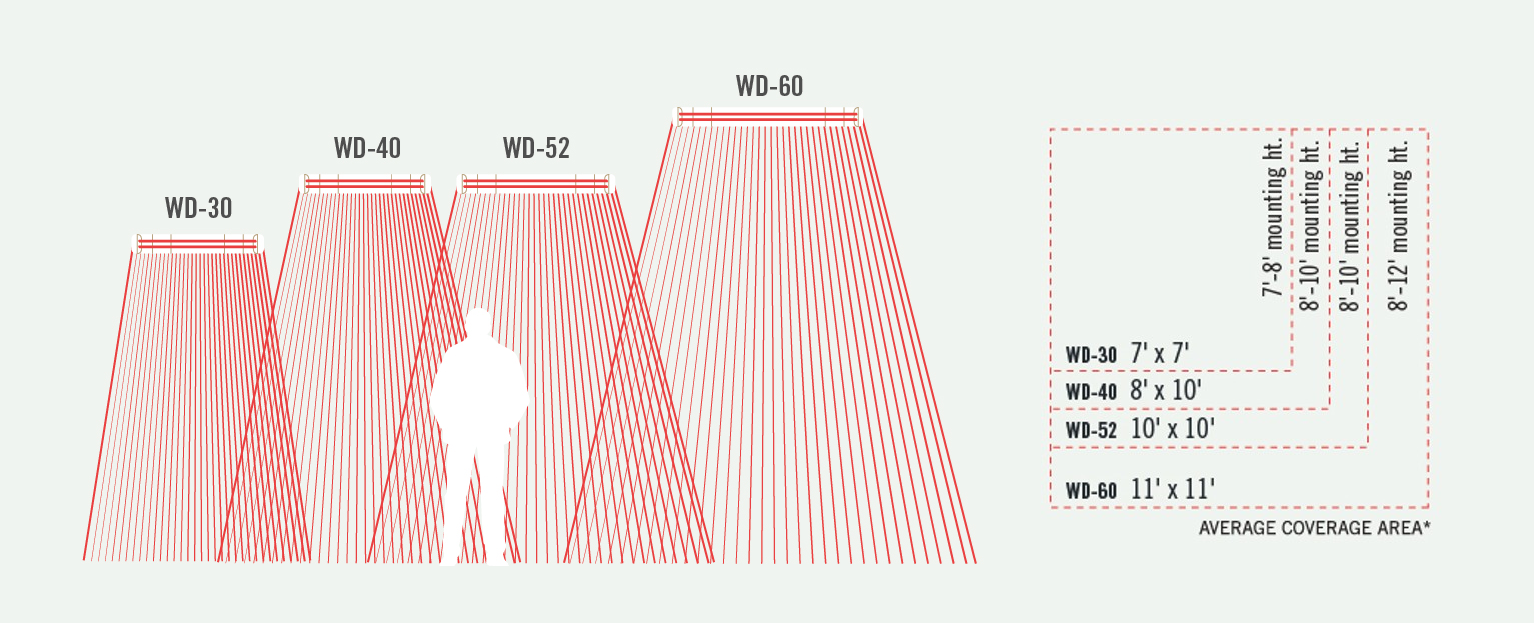

MAXIMUM COVERAGE - Enjoy concentrated 5200-watt performance, for efficient heating of a 10' x 10' area.
INTENSITY - Optimizes the watt/density formula for maximum comfort.
VERSATILITY - Ideal for a wide range of spaces and design styles.

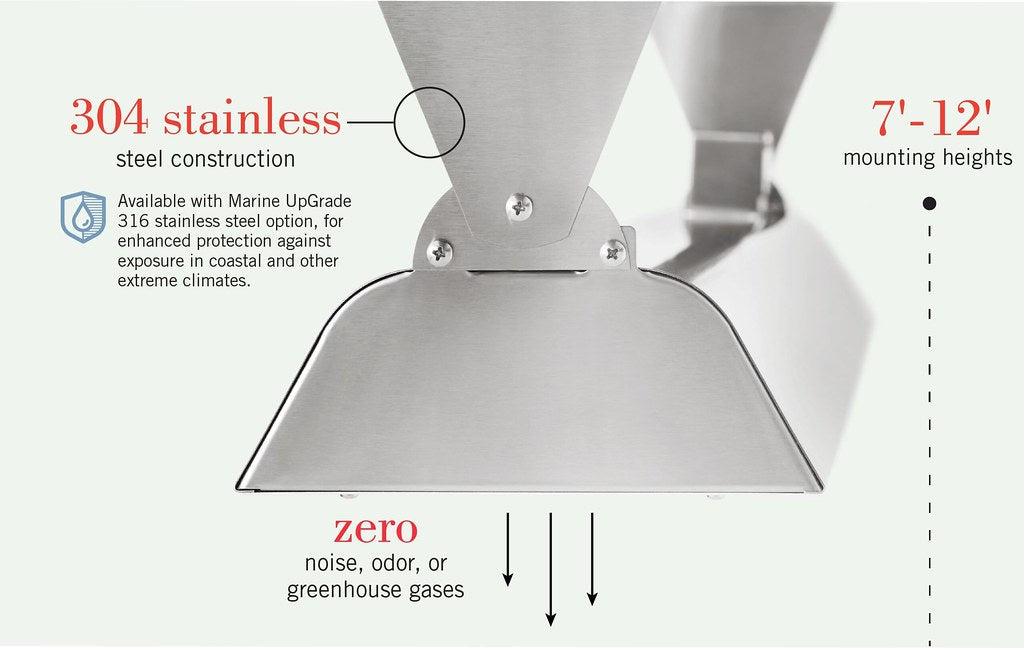

MARINE-GRADE DURABILITY - Marine Upgrade corrosion-resistant 316 stainless steel construction for even longer-lasting performance.
SWEET SPOT MOUNTING HEIGHT - Designed for a 10-foot ceiling — our most frequently requested specification.
Color: Marine Grade
Product Size: 48 in. x 8.19 in. x 3 in.
Product Weight: 16 lb(s.)
Shipping Box Dimensions: 51 in. x 9 in. x 8 in.
Shipping Weight: 16 lb(s.)
Material: 316 Stainless Steel
Made in: USA
Shipping Origin: Irvine, CA
Product Warranty:
3-Year Factory Warranty + 1 Year Extension from InfratechHeating.com
Delivery time
This INFRATECH item ships UPS Ground from Irvine, CA and will take from 1-5 business days travel time, depending on your location within the Continental US.
